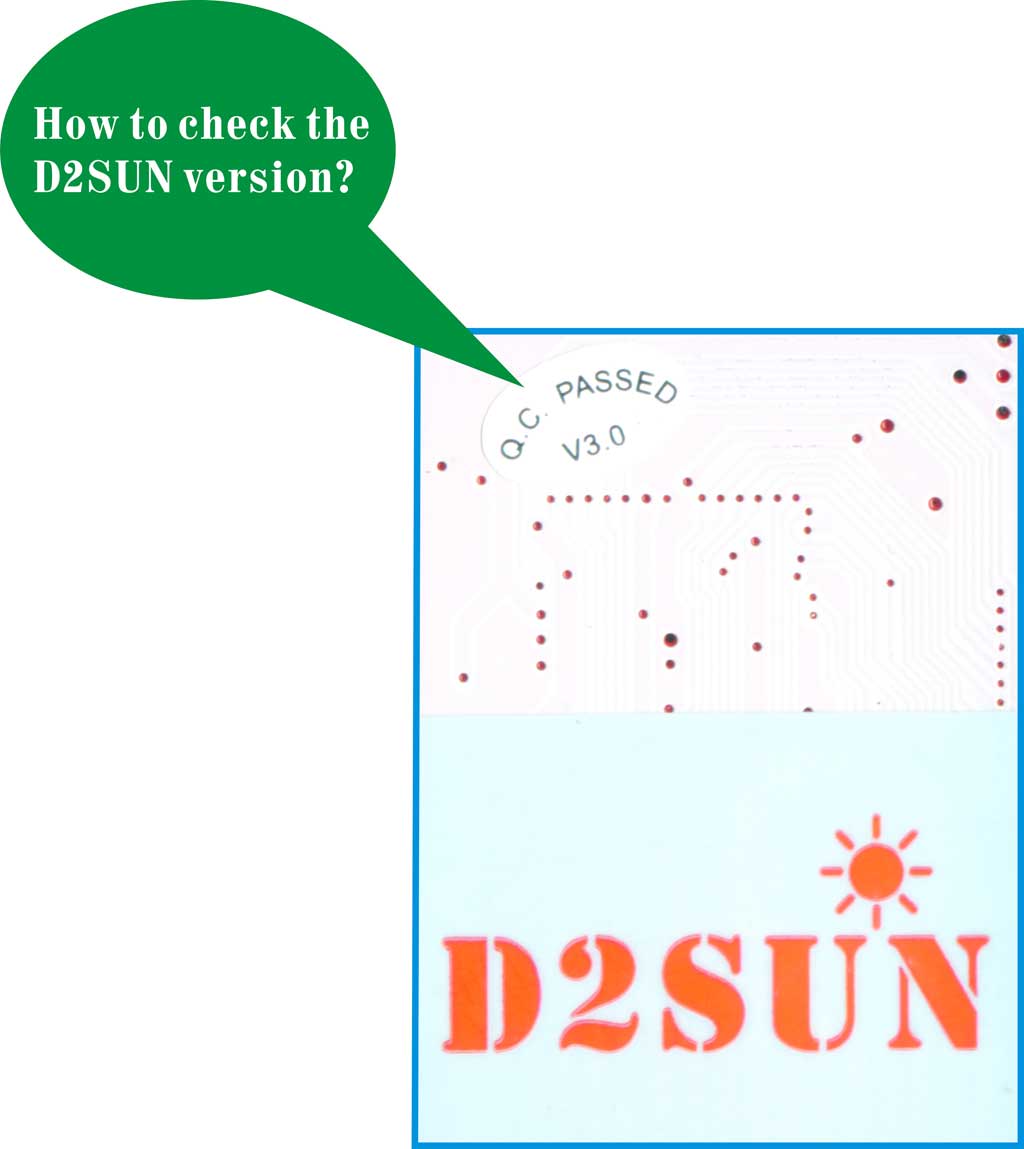

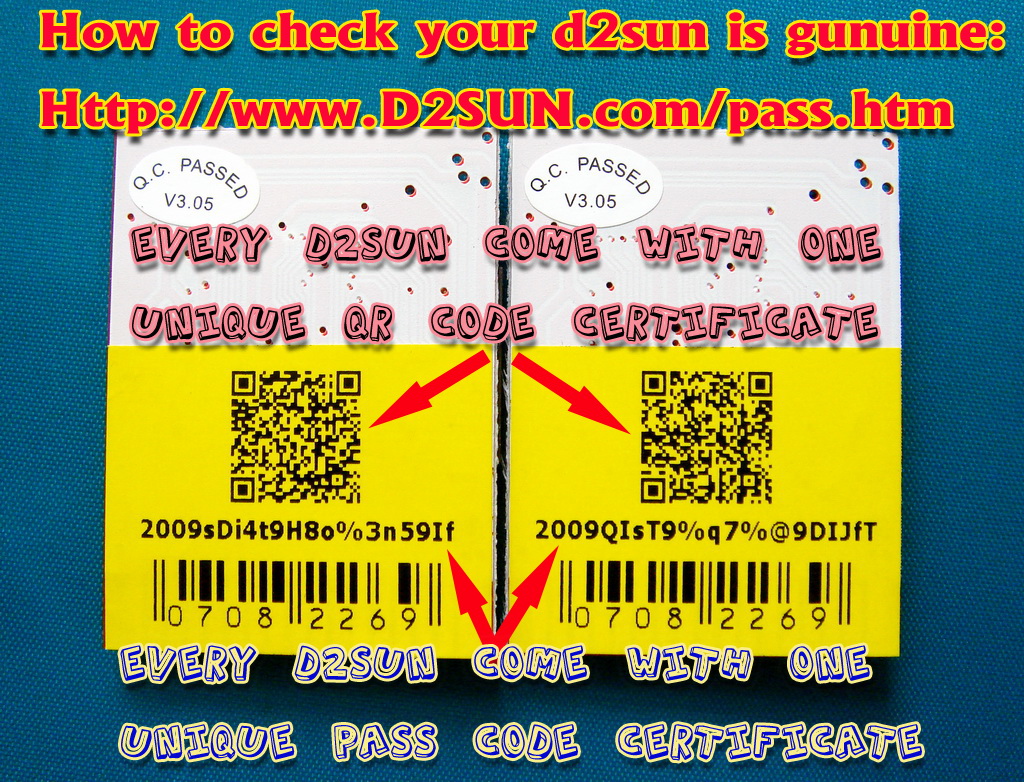

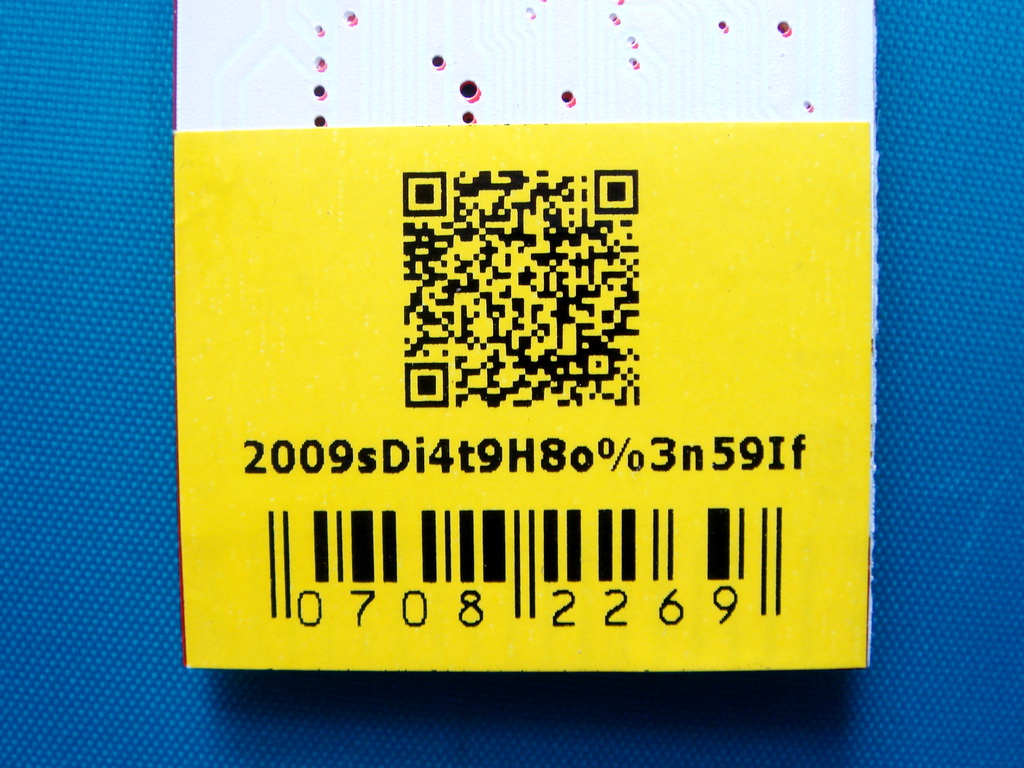

How to check the D2SUN exactly chip version?

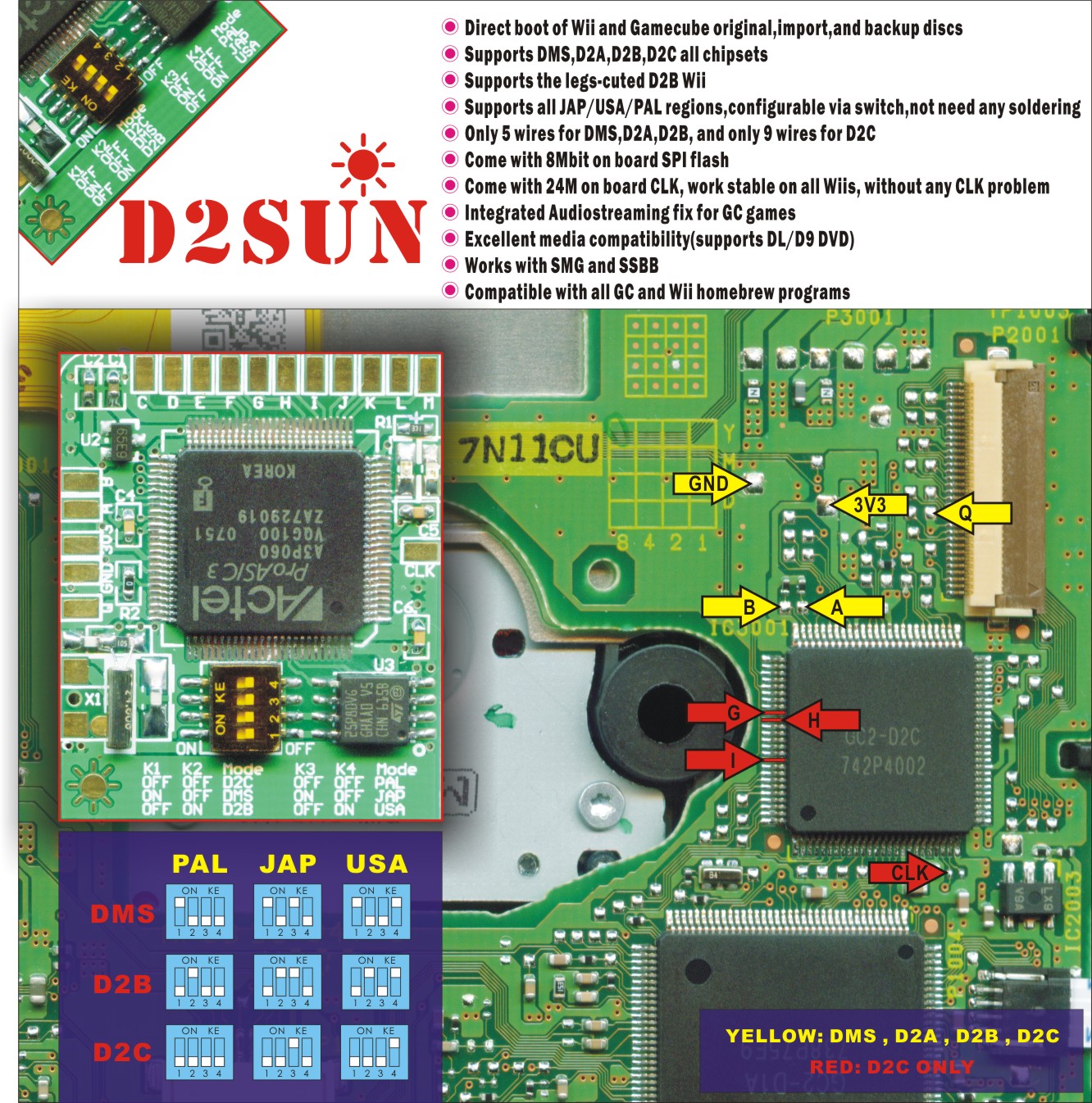

Install diagram for D2SUN V1x , V2x & V3x series
|
|

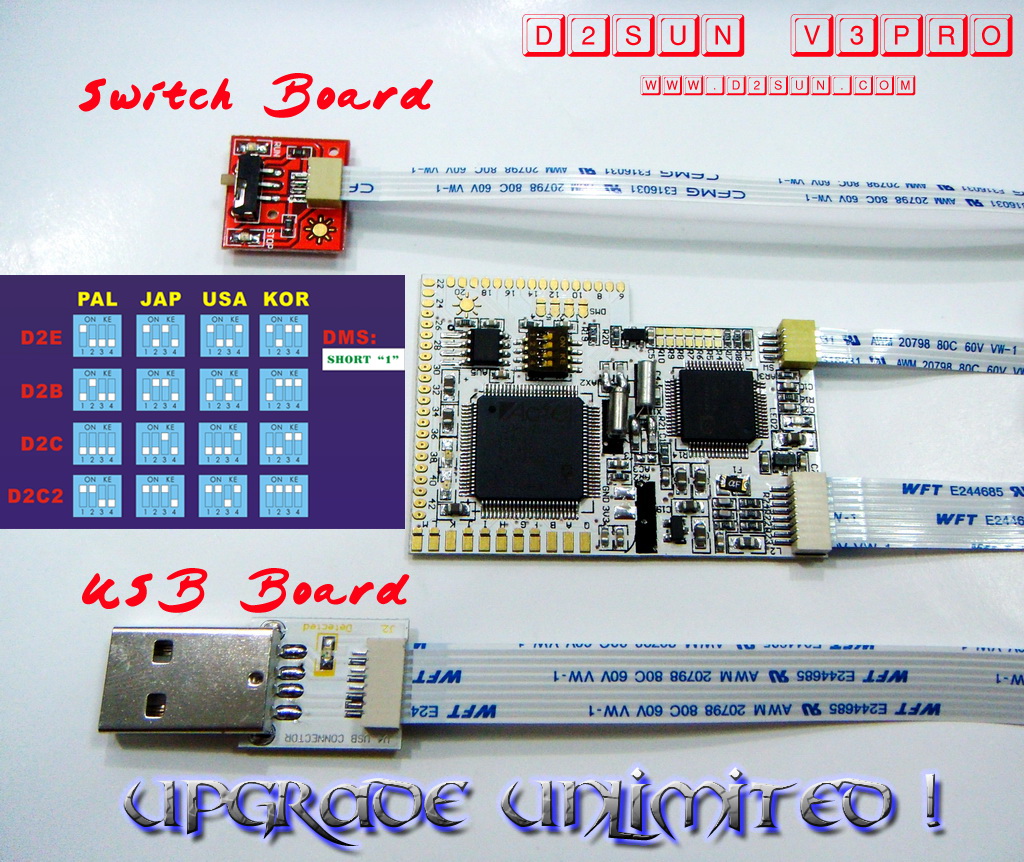

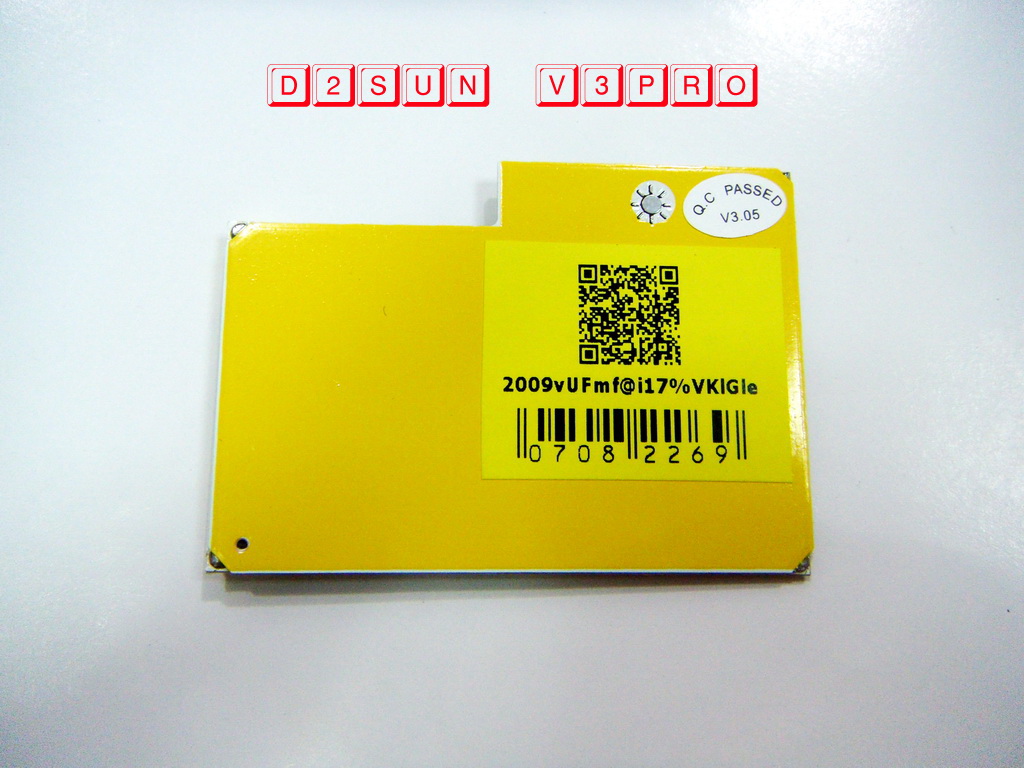

V3Pro  |

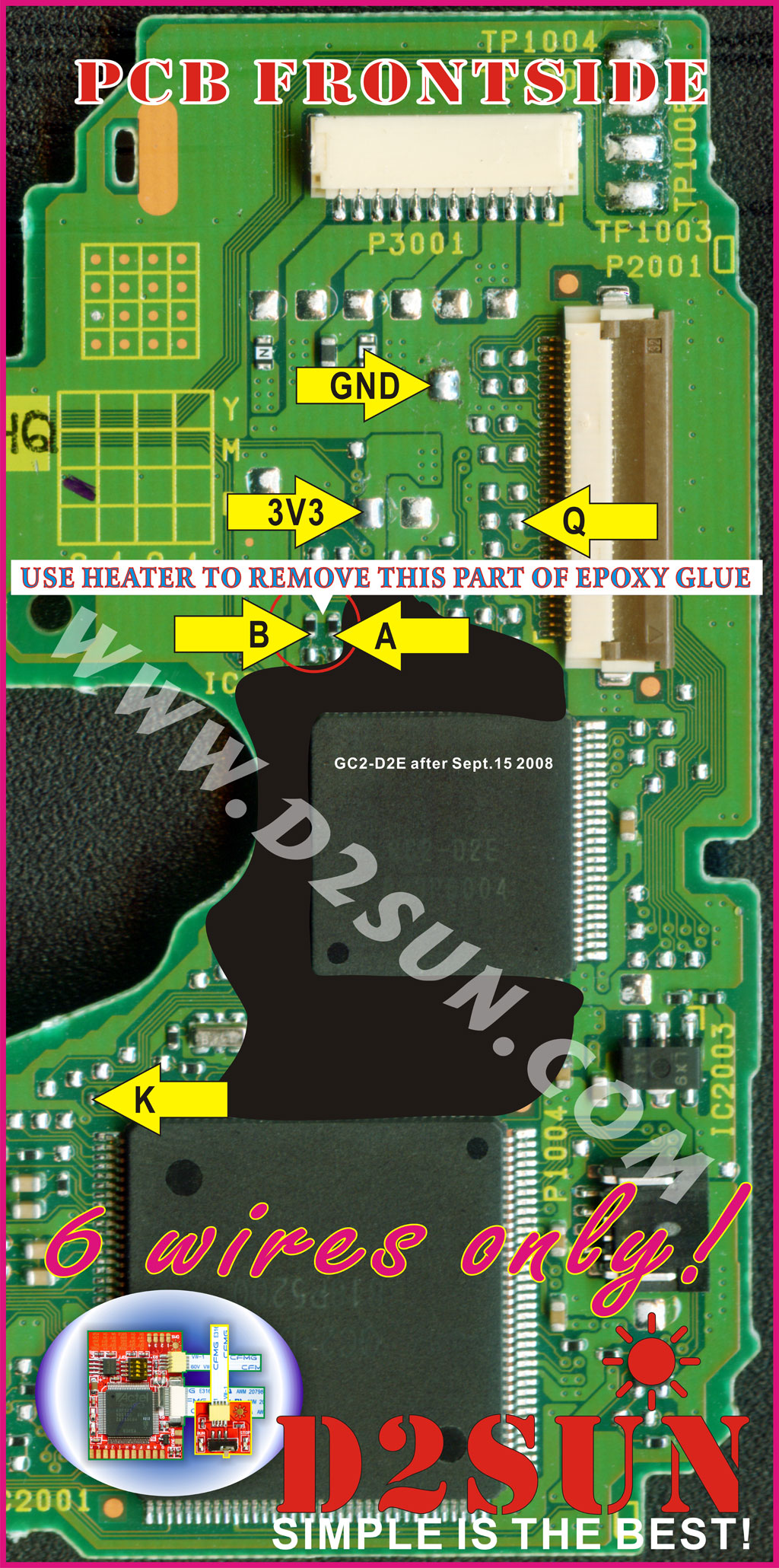

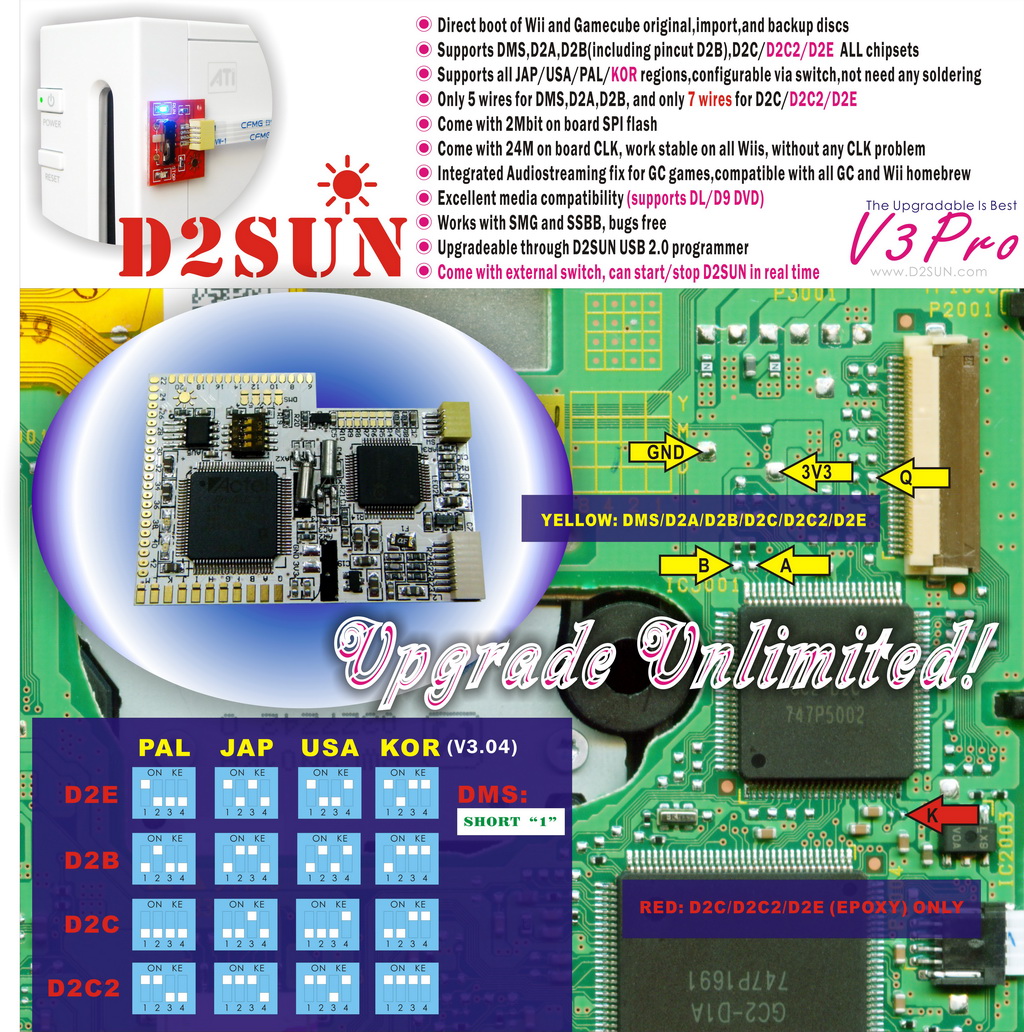

The new 6 wires Install diagram for D2SUN V3Pro

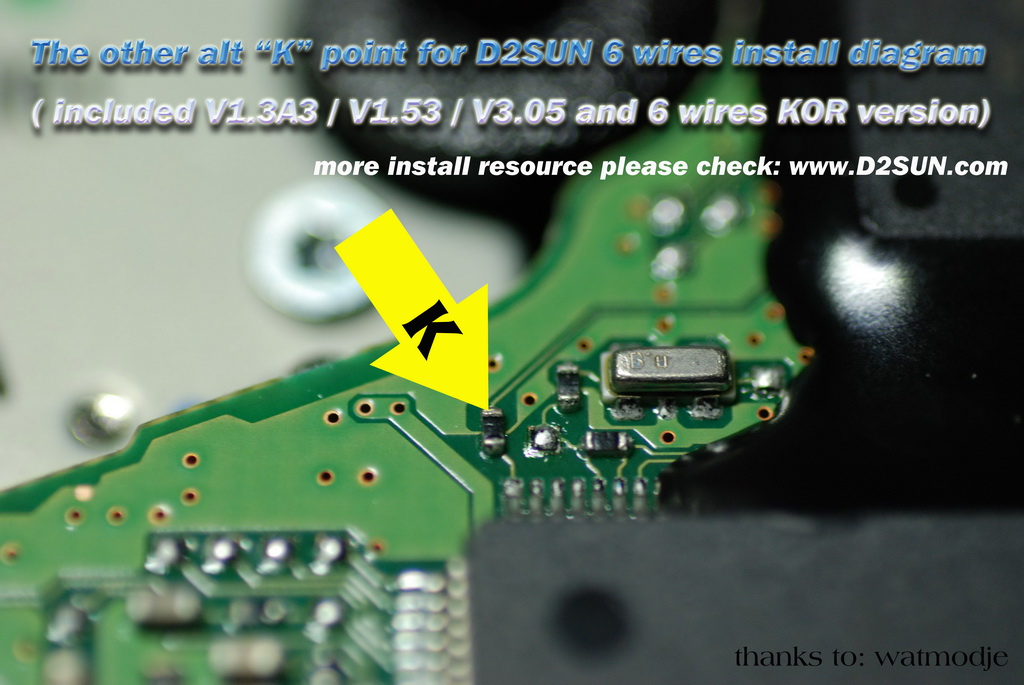

(Alt. "K" for EPOXY D2E:
 ) (6 wires only, Support DMS,D2A,D2B,D2C,D2C2,D2E and JAP/USA/PAL/KOR all regions) |

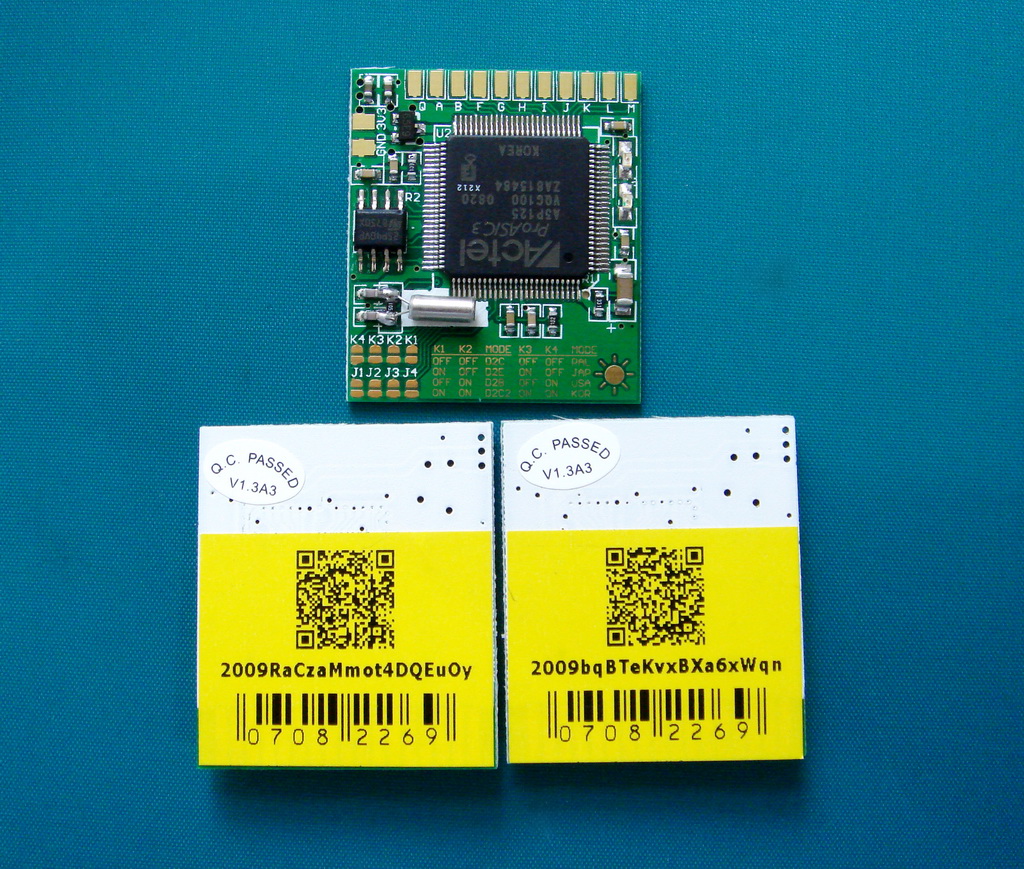

V1.3A3 / A5  |

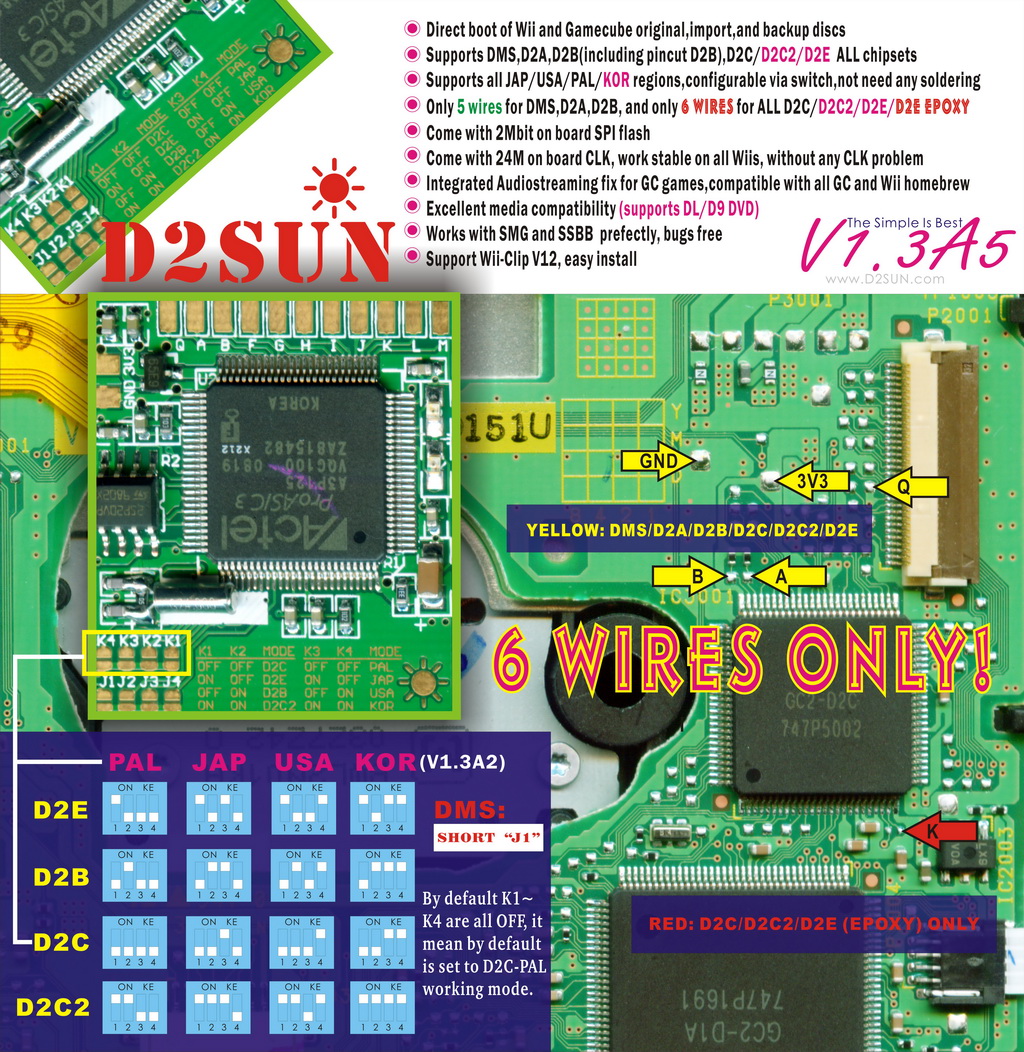

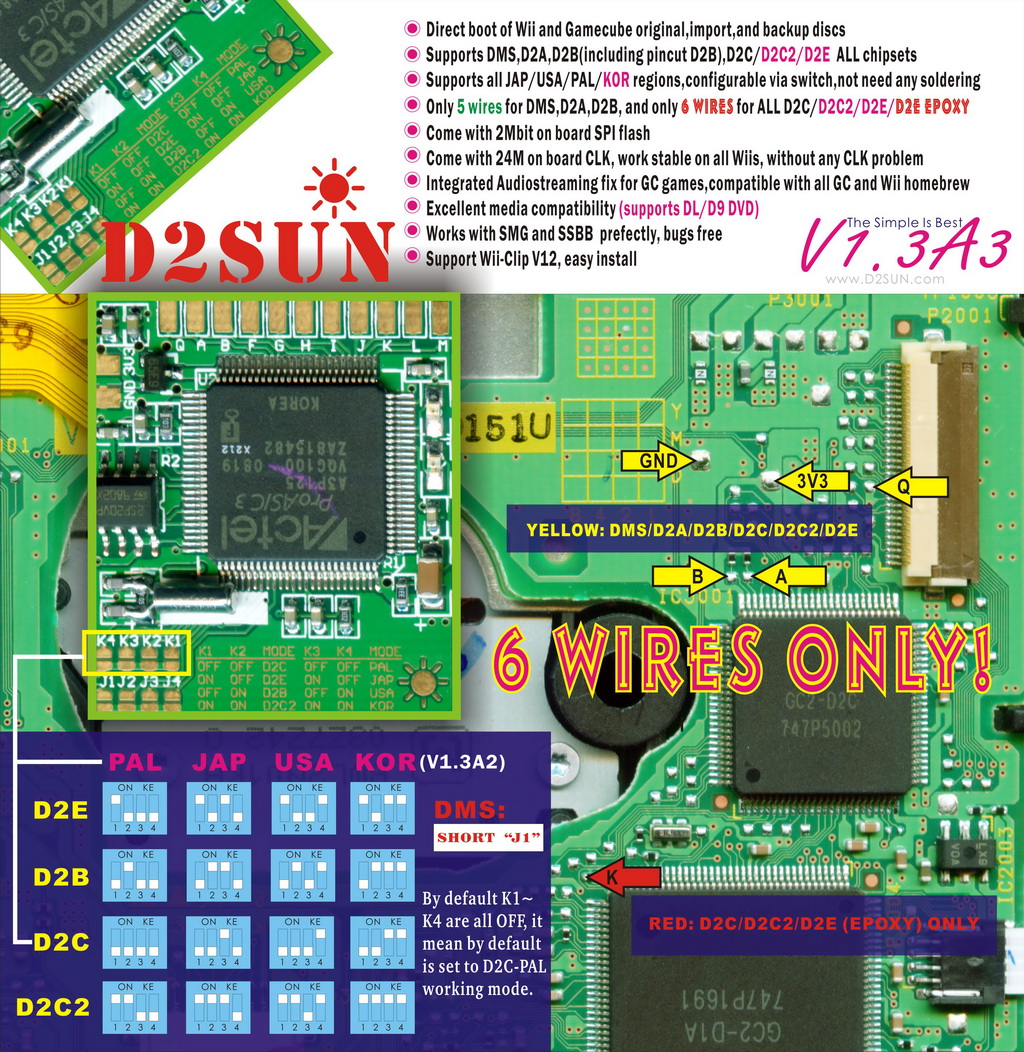

The new 6 wires Install diagram for D2SUN V1.3A5
(Alt. "K" for EPOXY D2E:
)The new 6 wires Install diagram for D2SUN V1.3A3

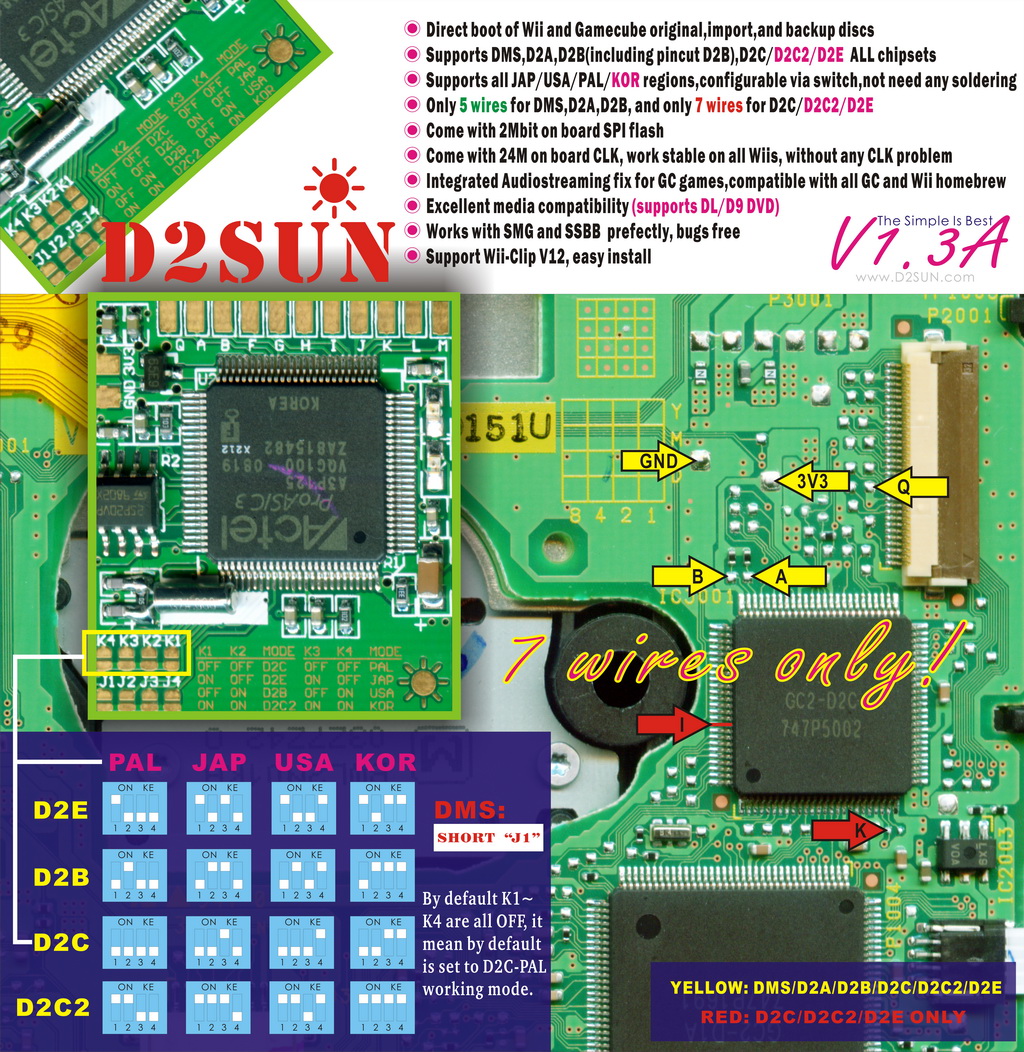

The new 7 wires Install diagram for D2SUN V1.3A

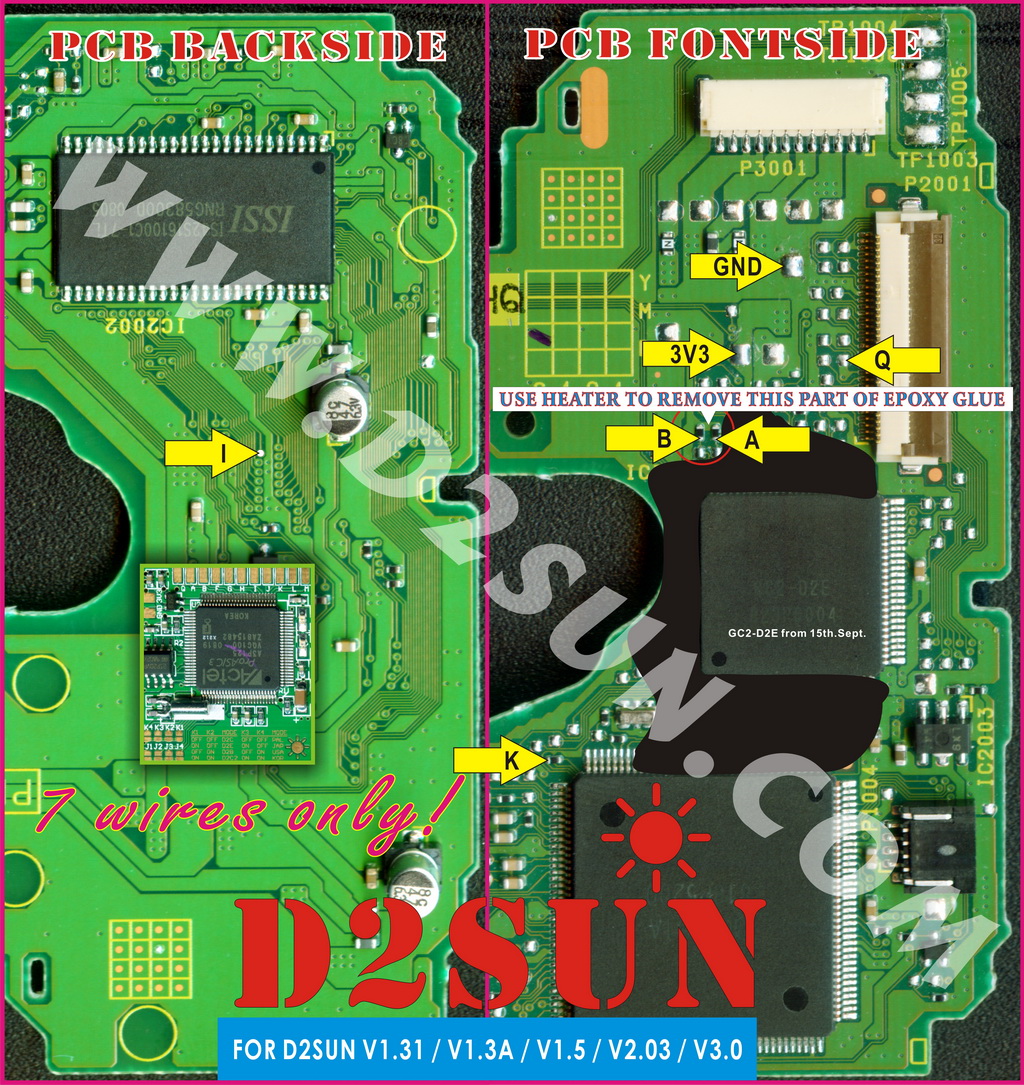

(Support DMS,D2A,D2B,D2C,D2C2,D2E and JAP/USA/PAL/KOR all regions)  How to install it to the EPOXY D2E ( This map support D2SUN v1.31 / v1.3A / V1.5 / v2.03 / V3.0 ) |

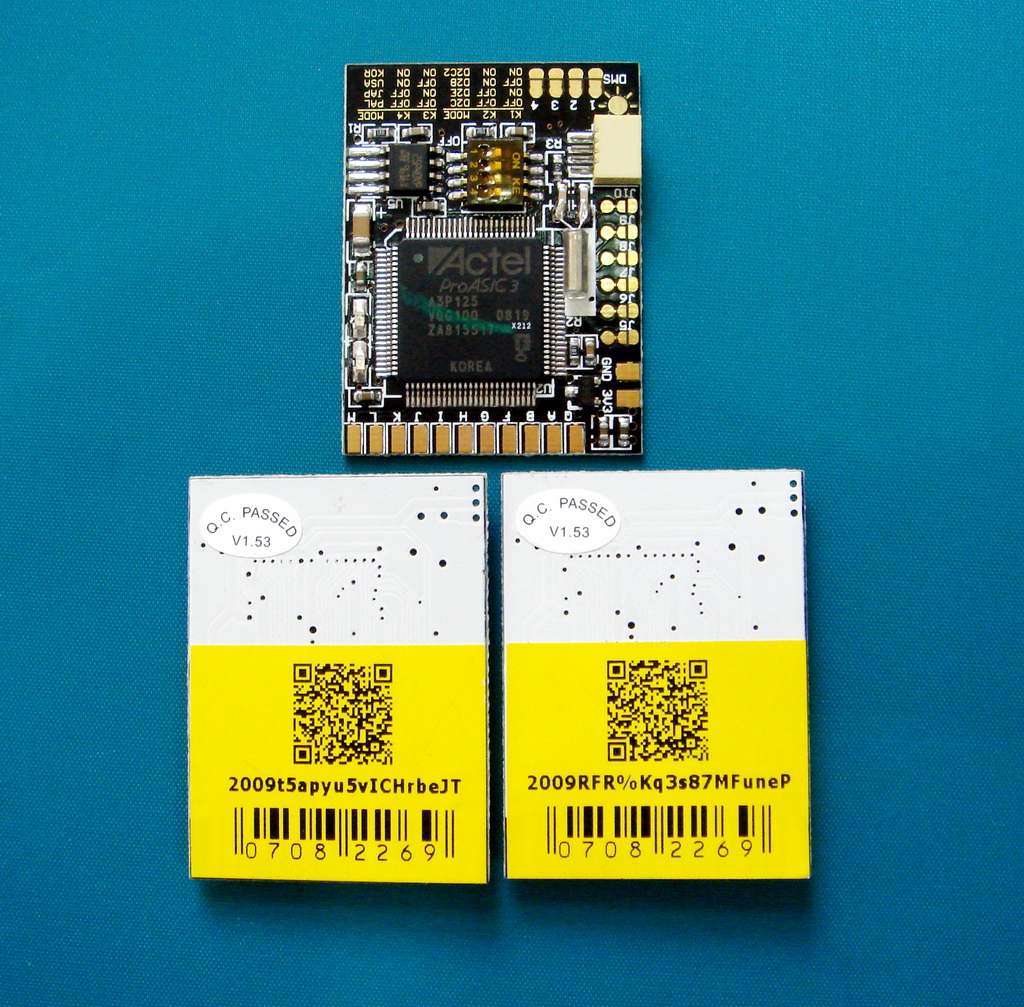

V1.53  |

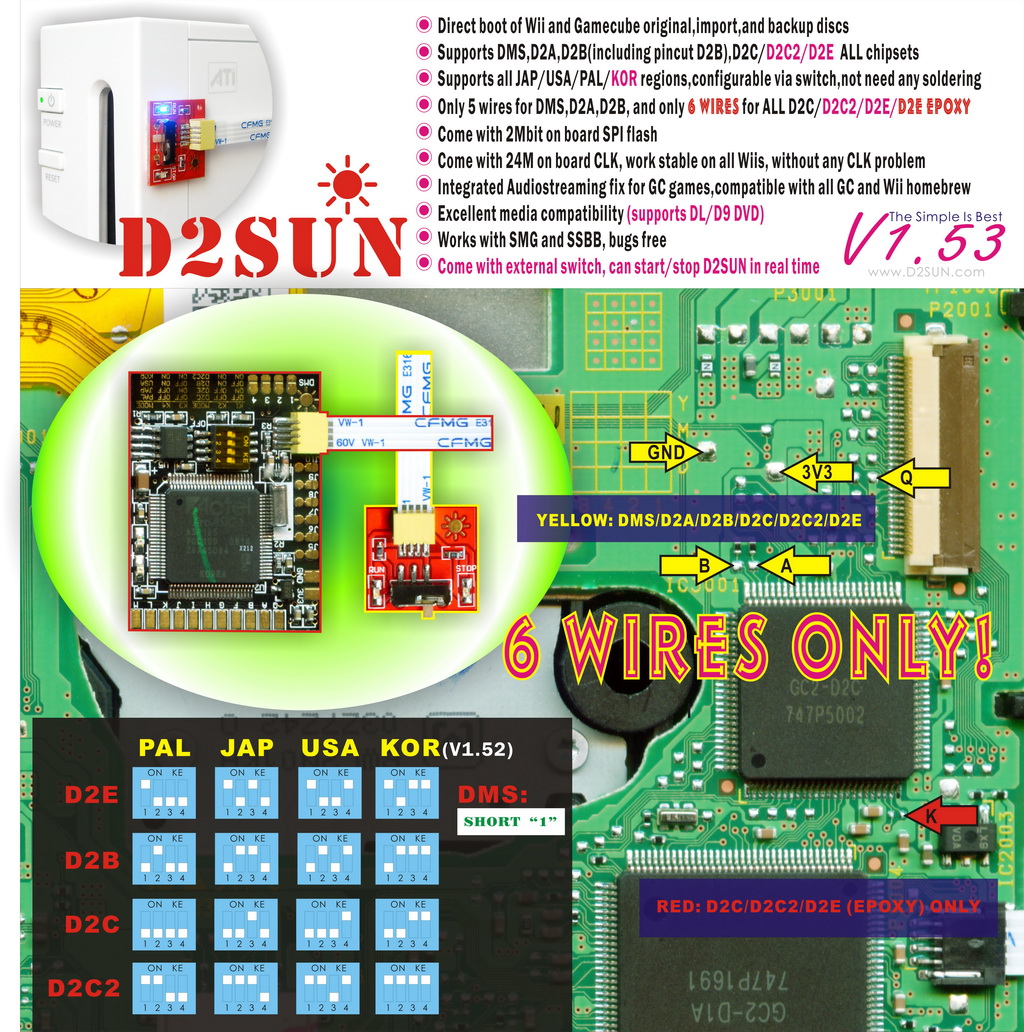

The last 6 wires Install diagram for D2SUN V1.52 / V1.53
(Alt. "K" for EPOXY D2E:
)The new 7 wires Install diagram for D2SUN V1.5

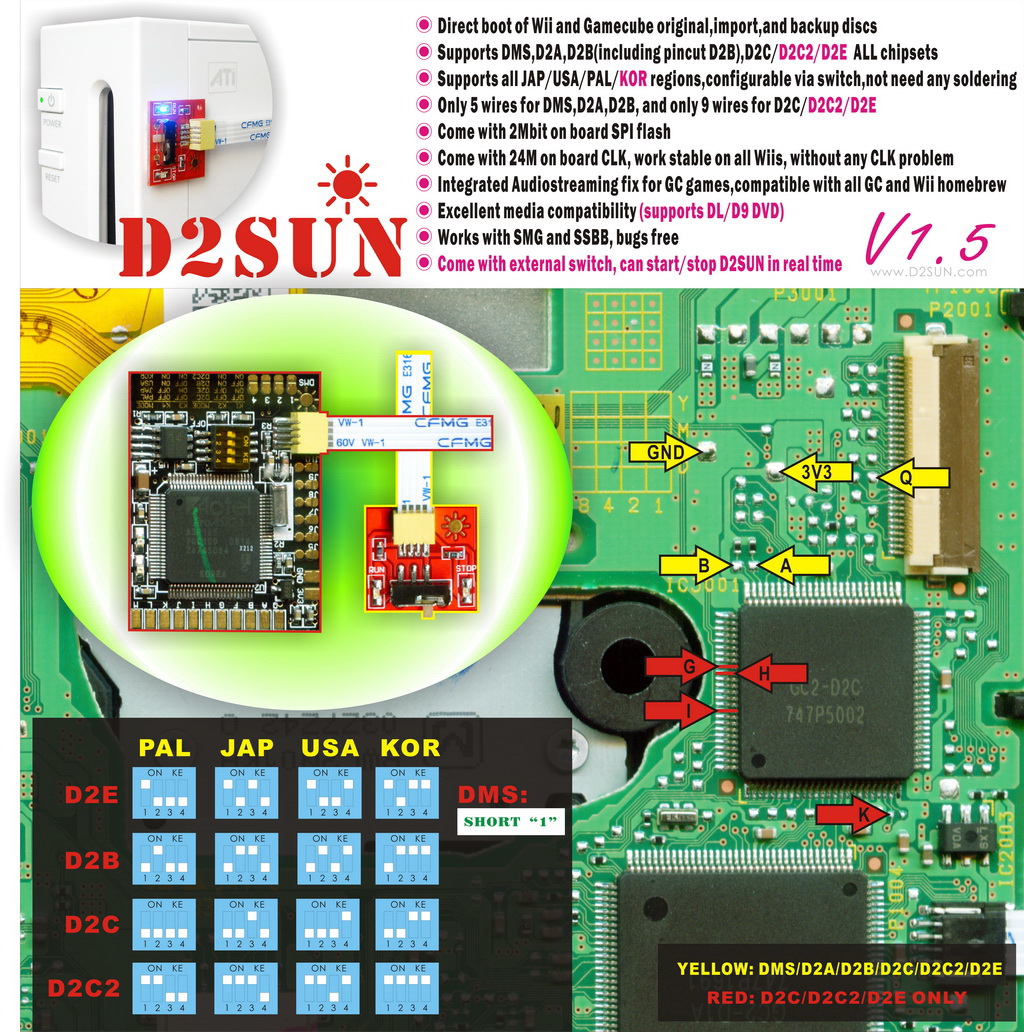

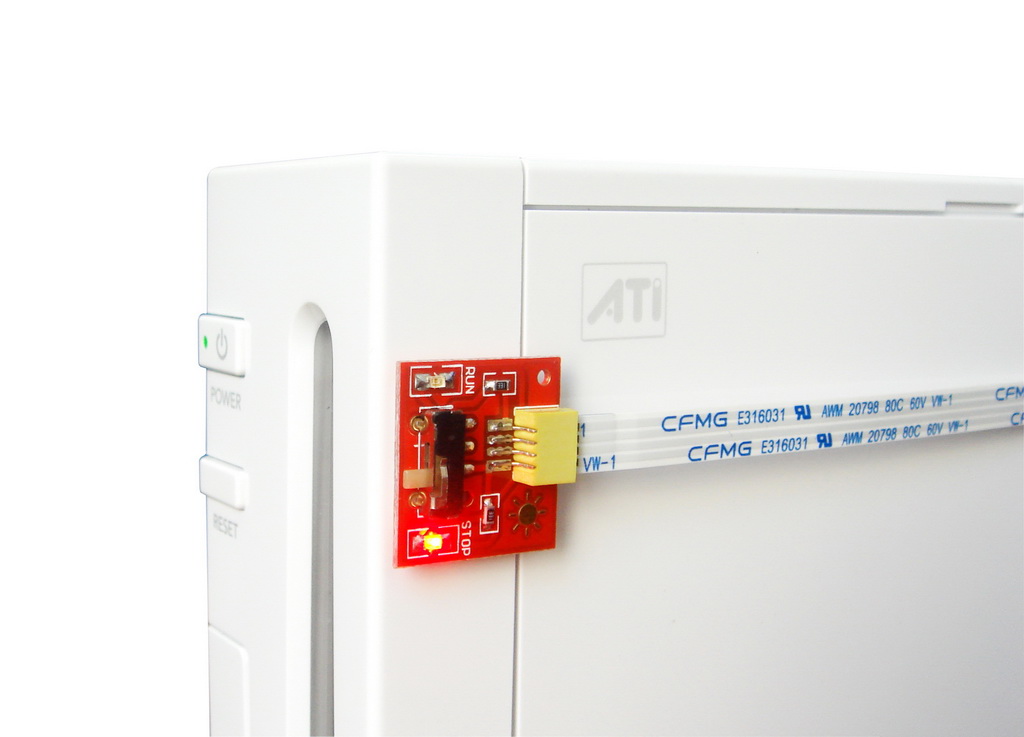

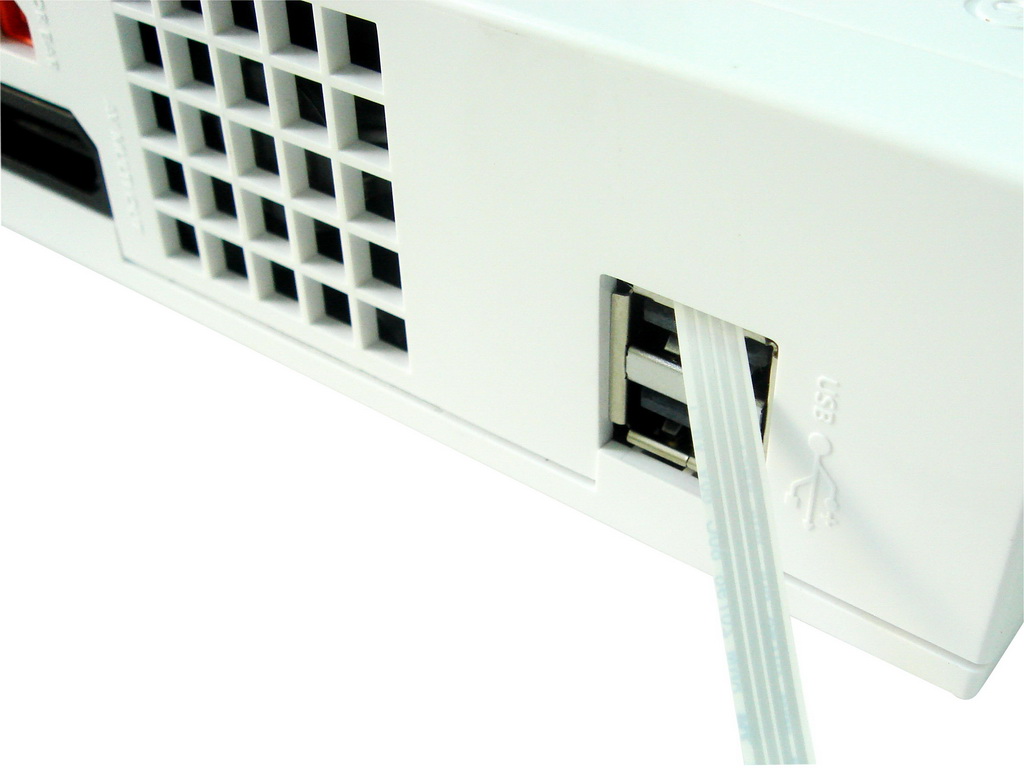

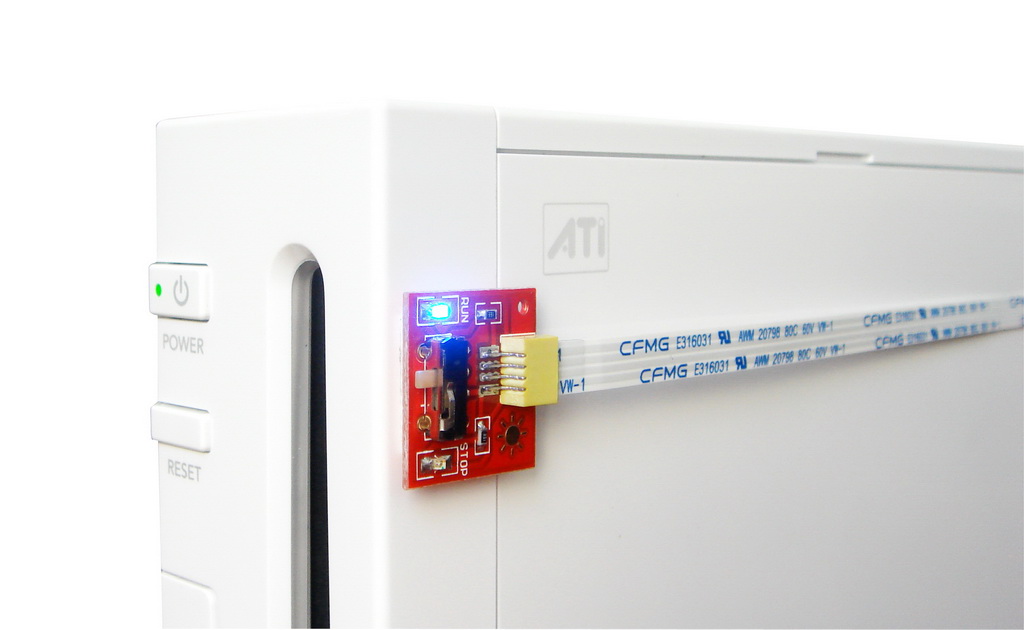

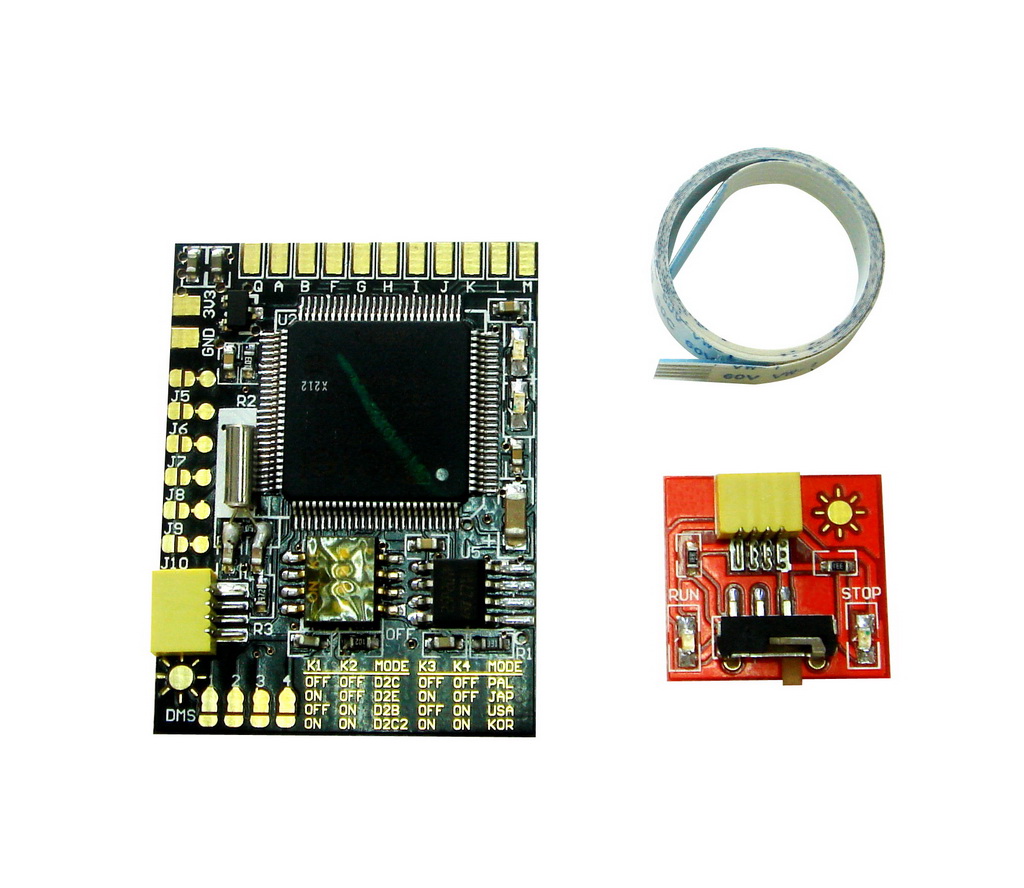

 The old 9 wires Install diagram for D2SUN V1.5  (Support DMS,D2A,D2B,D2C,D2C2,D2E and JAP/USA/PAL/KOR all regions, come with external control board) How to install D2SUN V1.5:
 When D2SUN running: When D2SUN stop:
 |

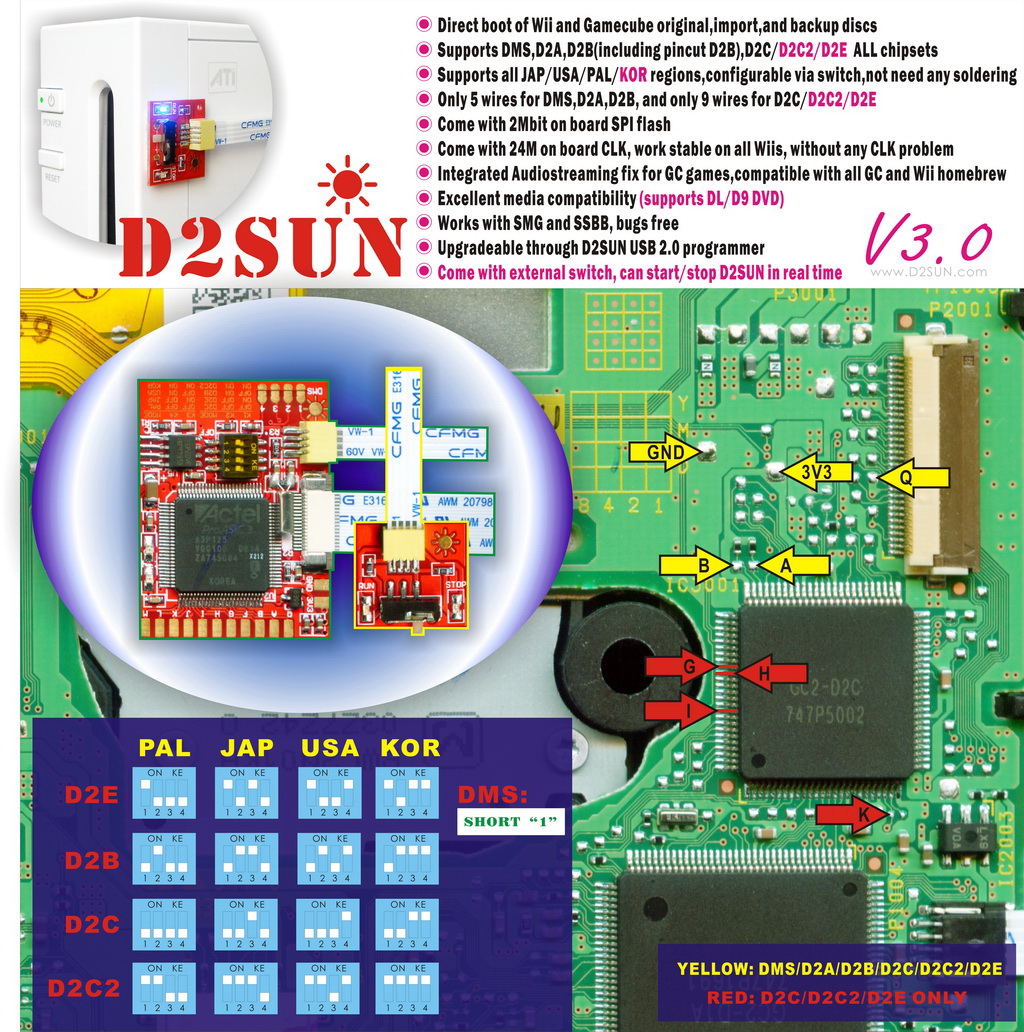

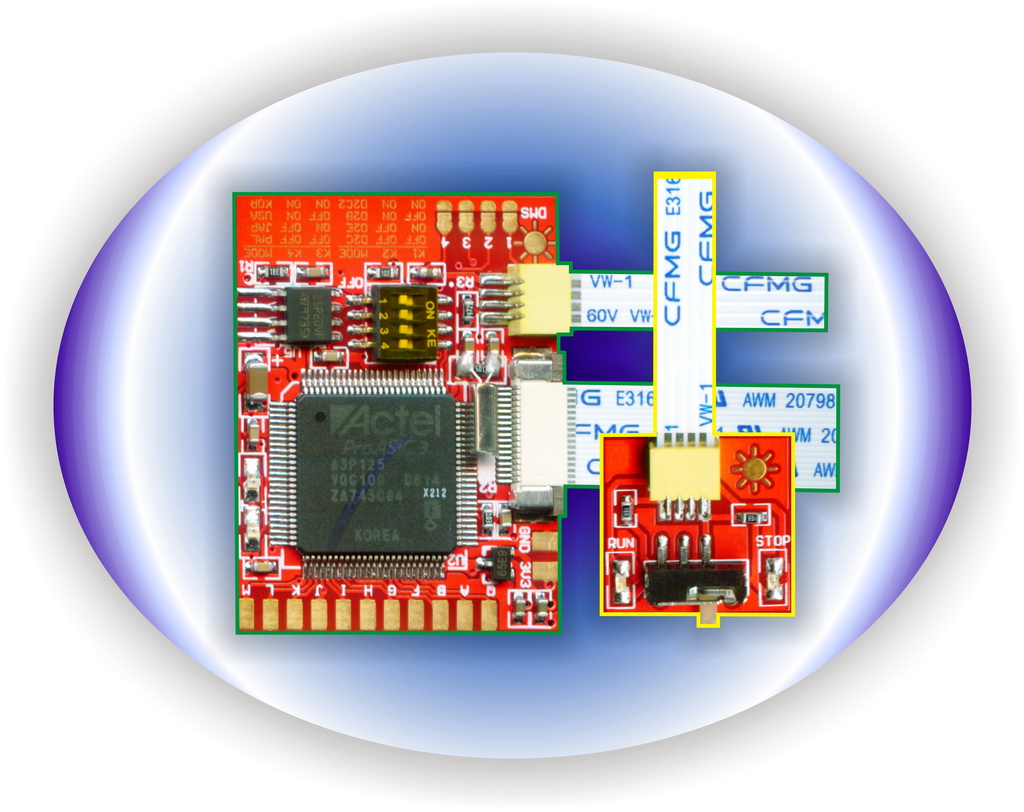

V3.0x   |

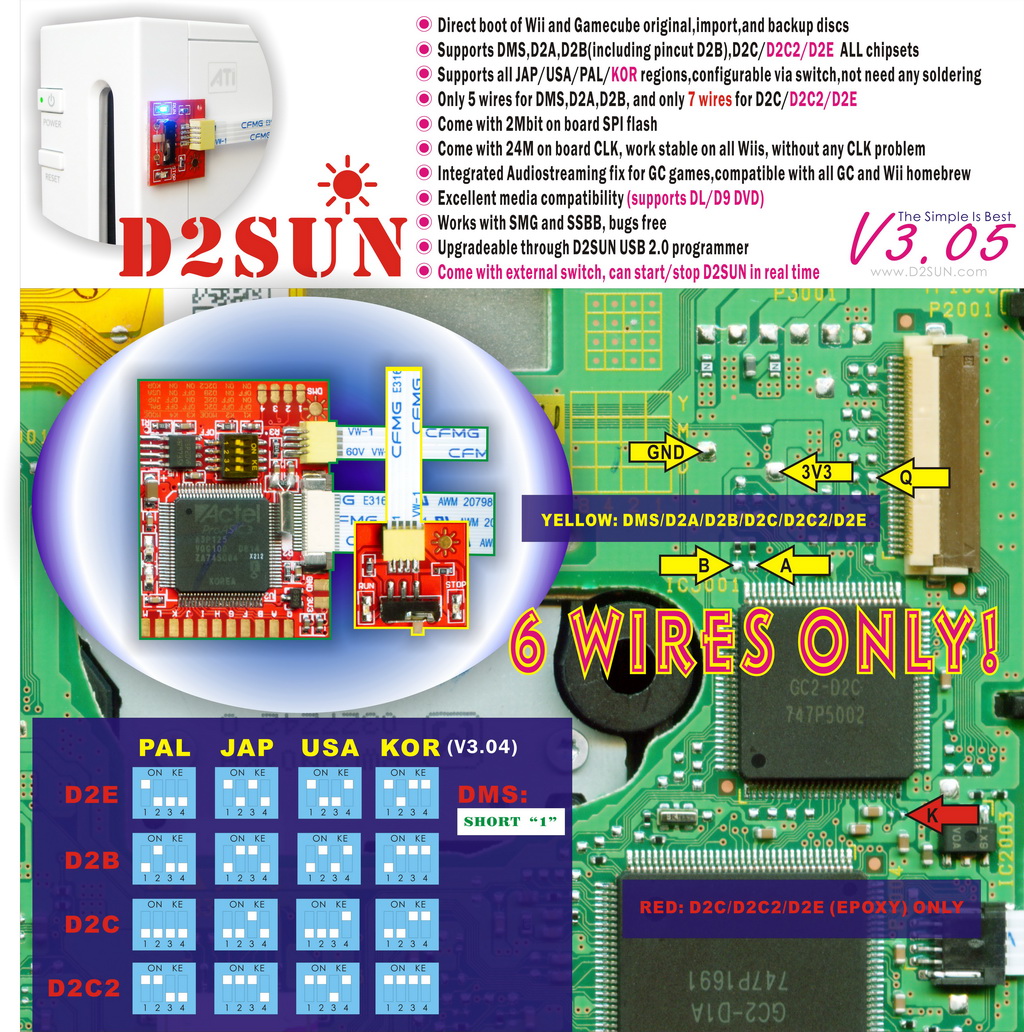

The last 6 wires Install diagram for D2SUN V3.04 / V3.05
(Alt. "K" for EPOXY D2E:
)The last 6 wires install diagram for V3.04 / V3.05 on the EPOXY D2E and D2C2, Simple Is The Best!  The new 7 wires Install diagram for D2SUN V3.02/3.03

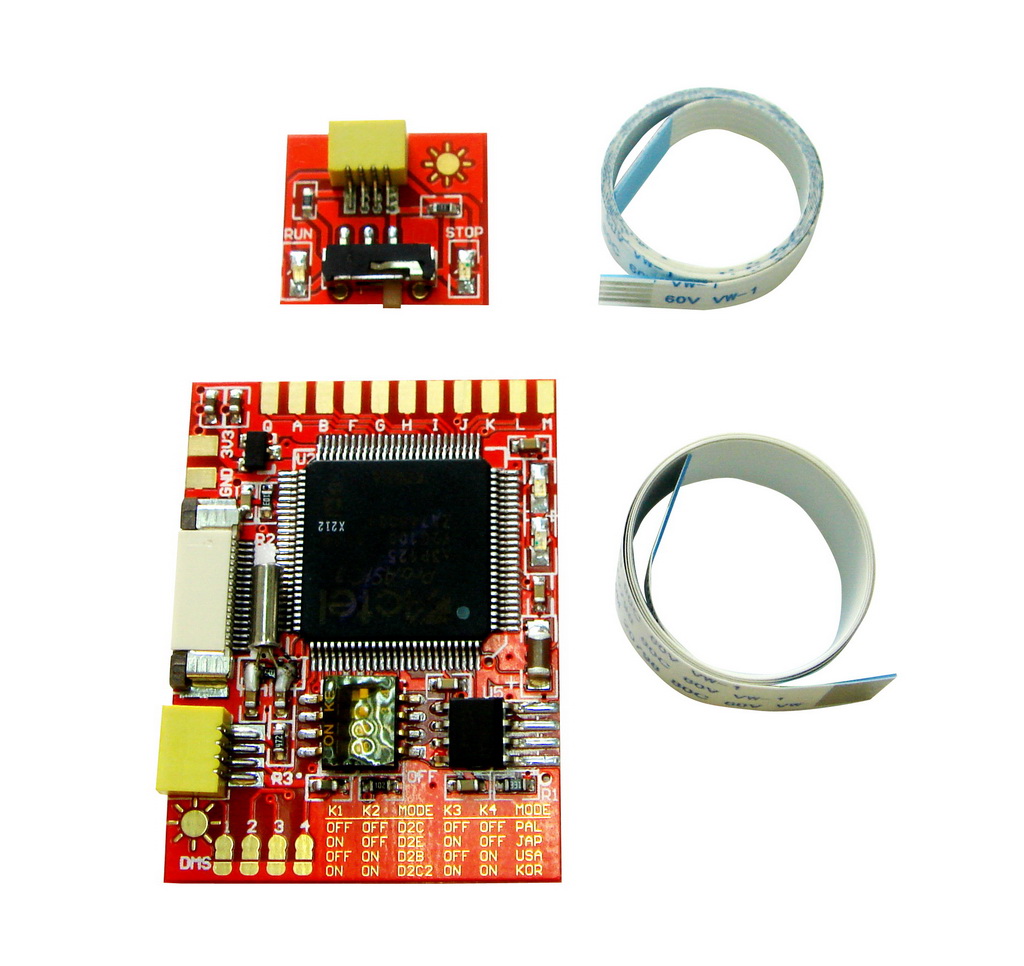

 (Support DMS,D2A,D2B,D2C,D2C2,D2E and JAP/USA/PAL/KOR all regions, upgradeable via D2SUN USB kit, and come with external control board) The old 9 wires Install diagram for D2SUN V3.02/3.03

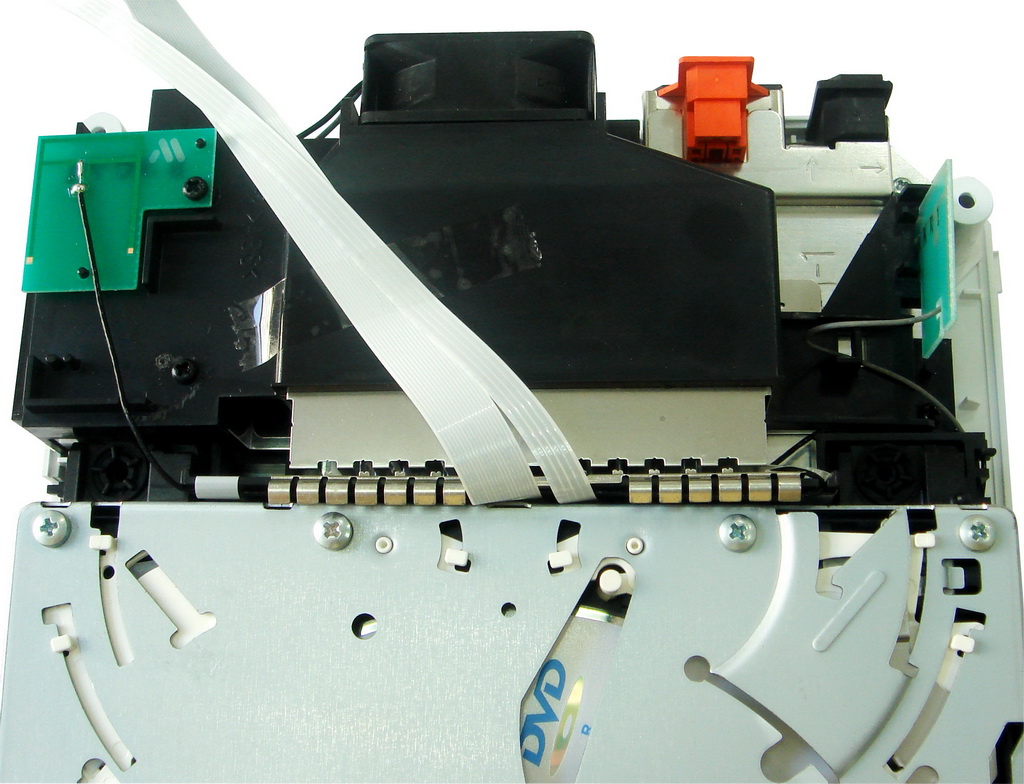

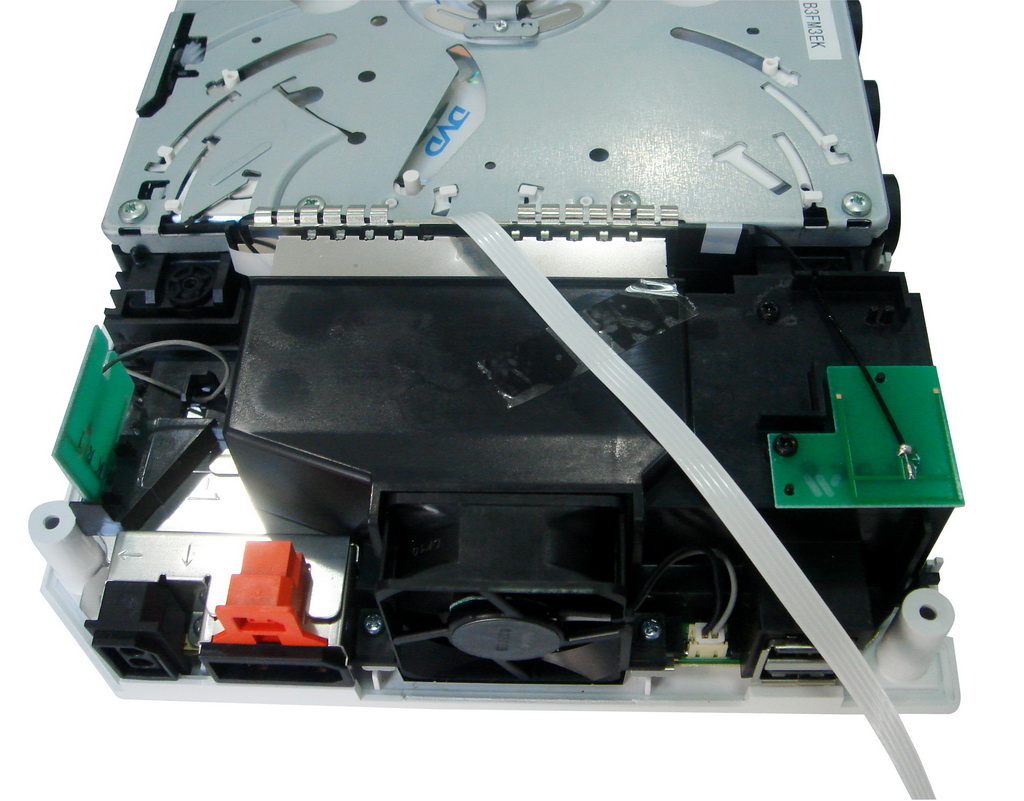

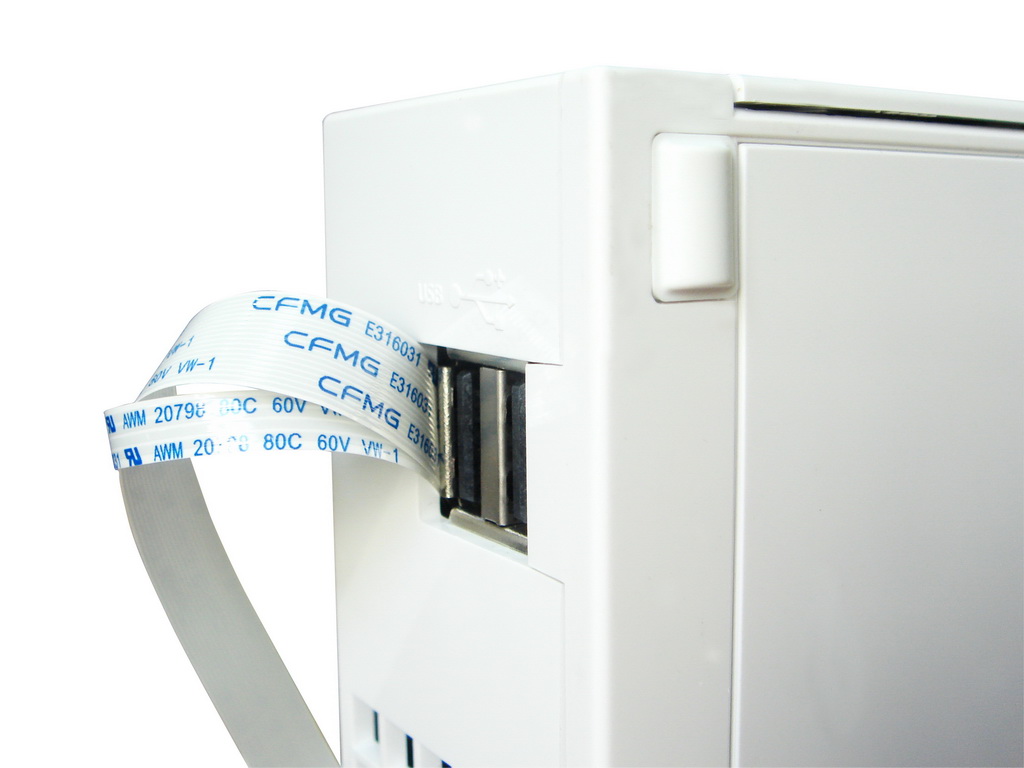

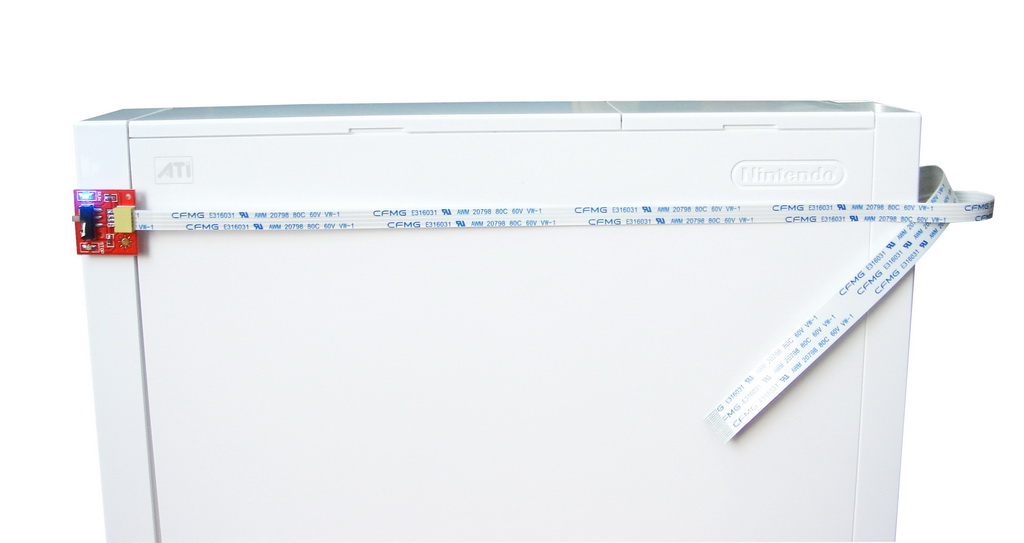

How to install D2SUN V3.x:

 |
|
|
|

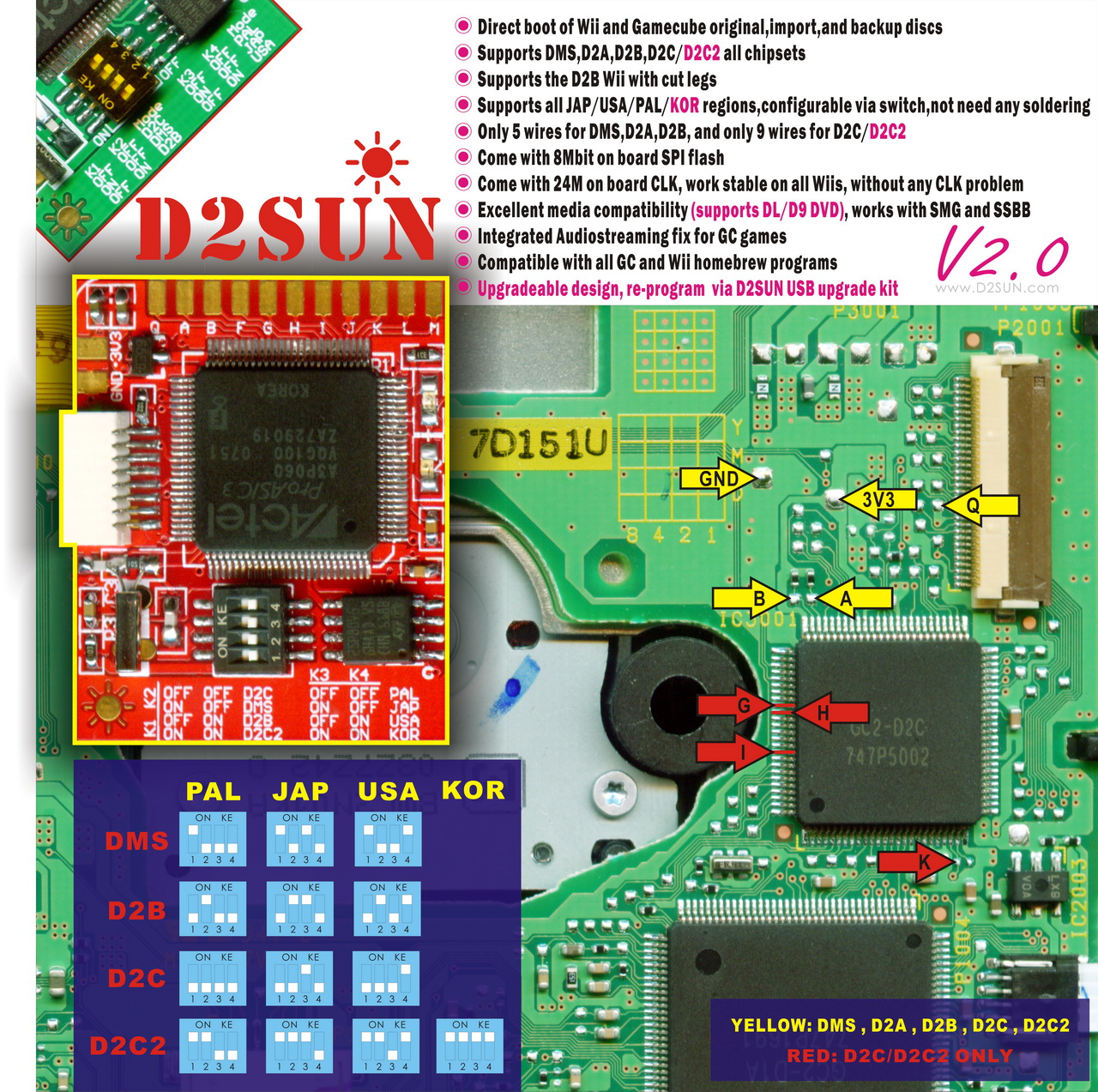

V2.02 / V2.03 |

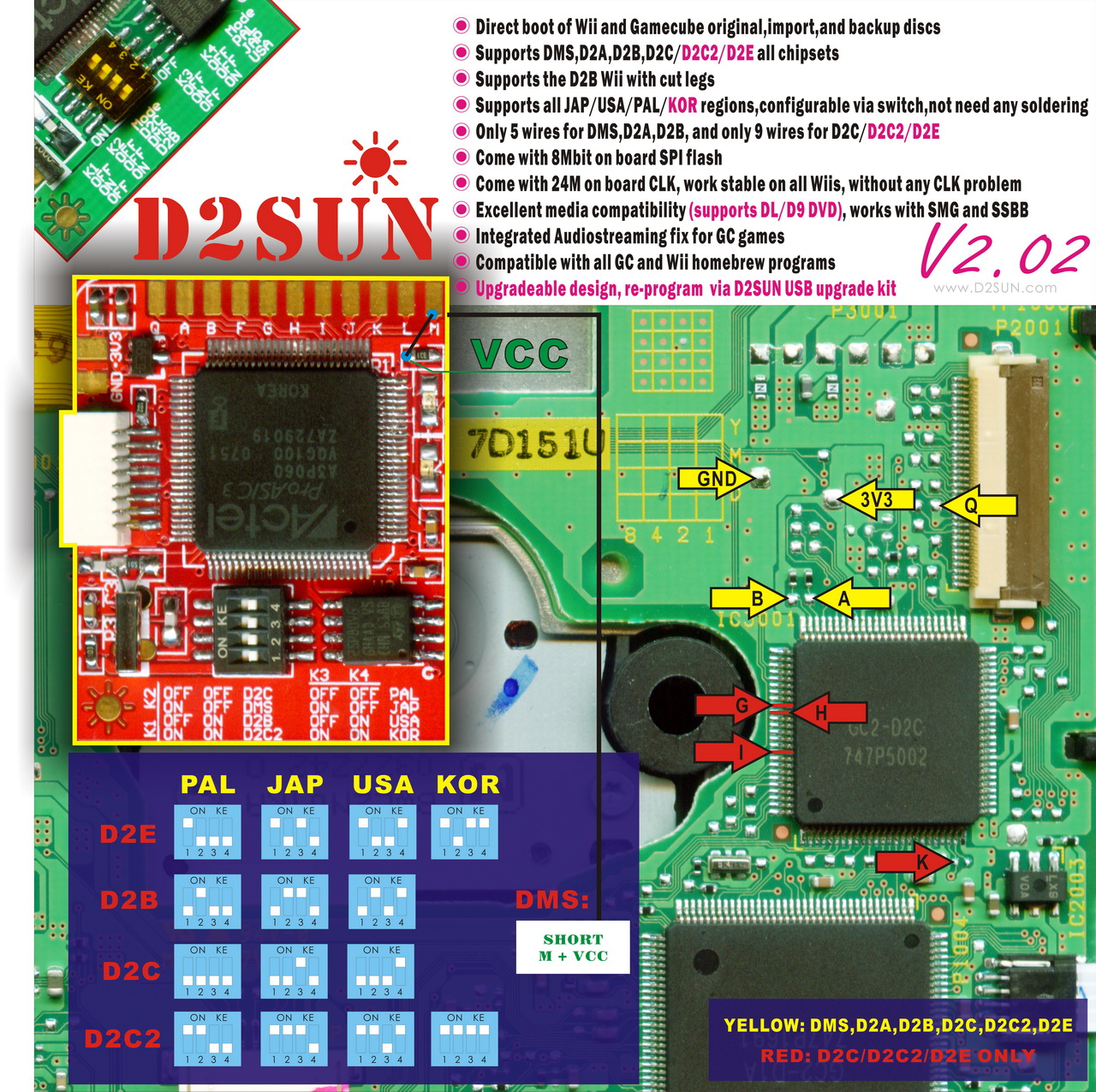

 The Install diagram for D2SUN V2.02 and V2.03 (Support DMS,D2A,D2B,D2C,D2C2,D2E and JAP/USA/PAL/KOR regions, and upgradeable via D2SUN USB upgrade kit.) |

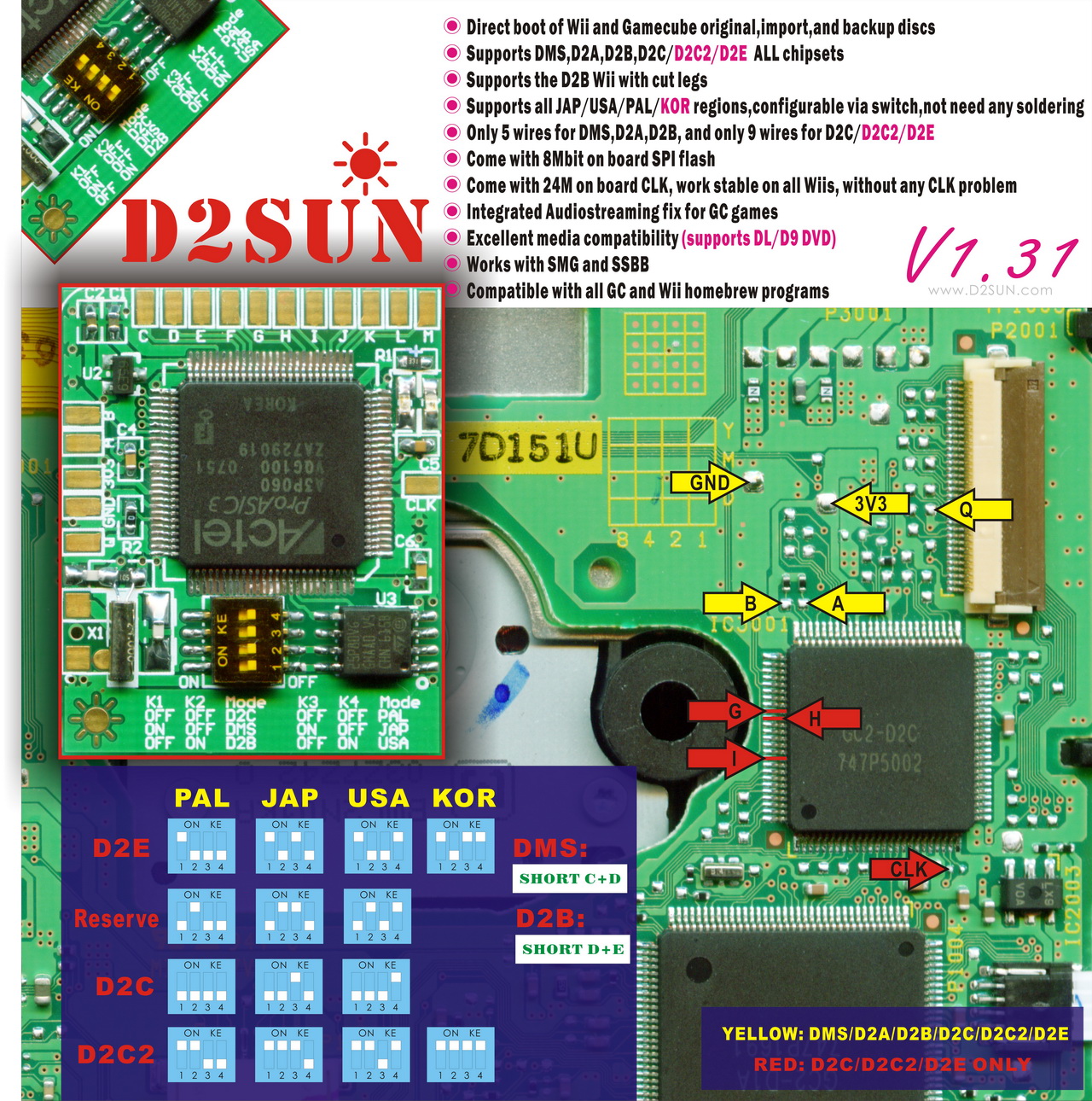

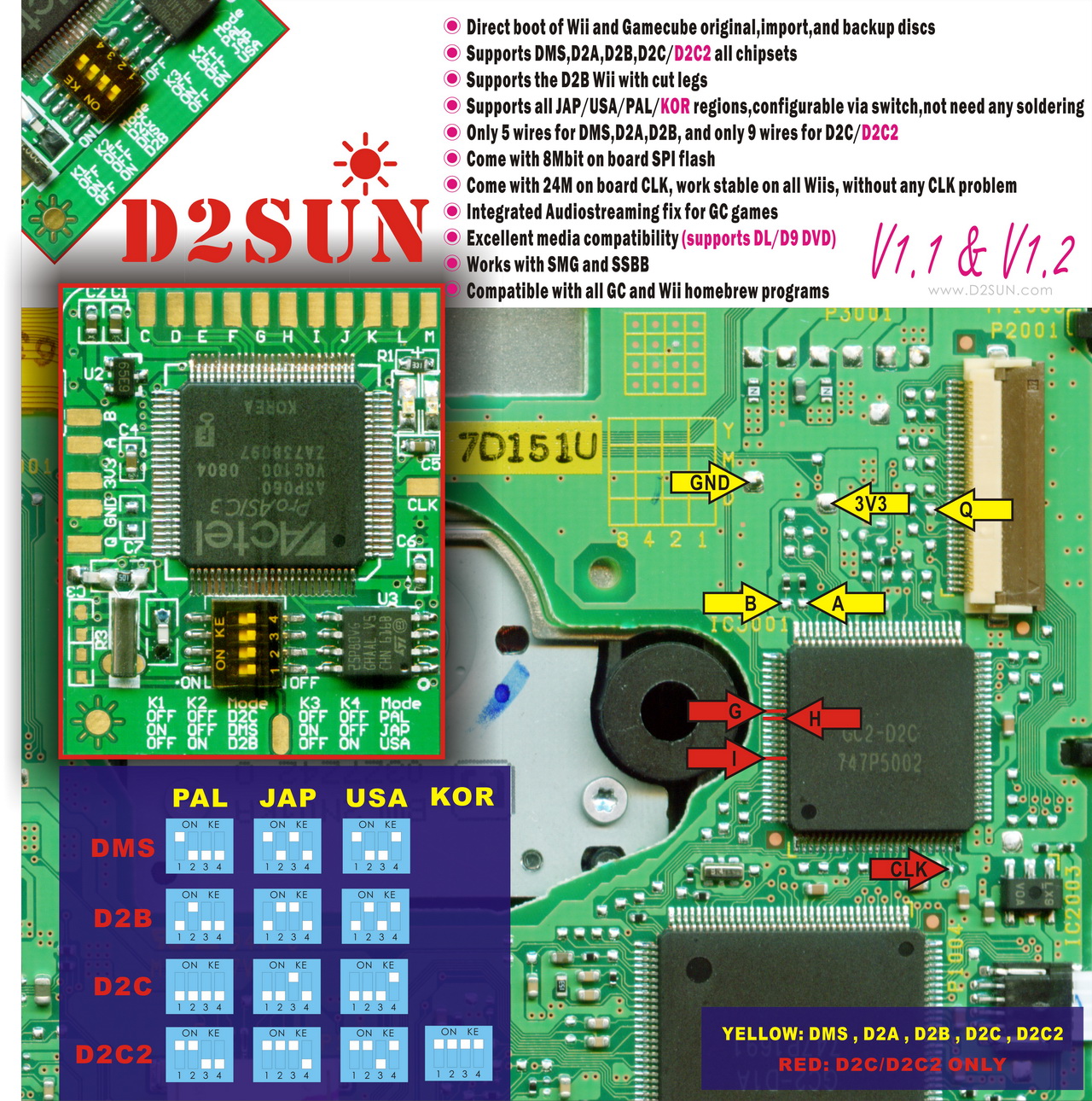

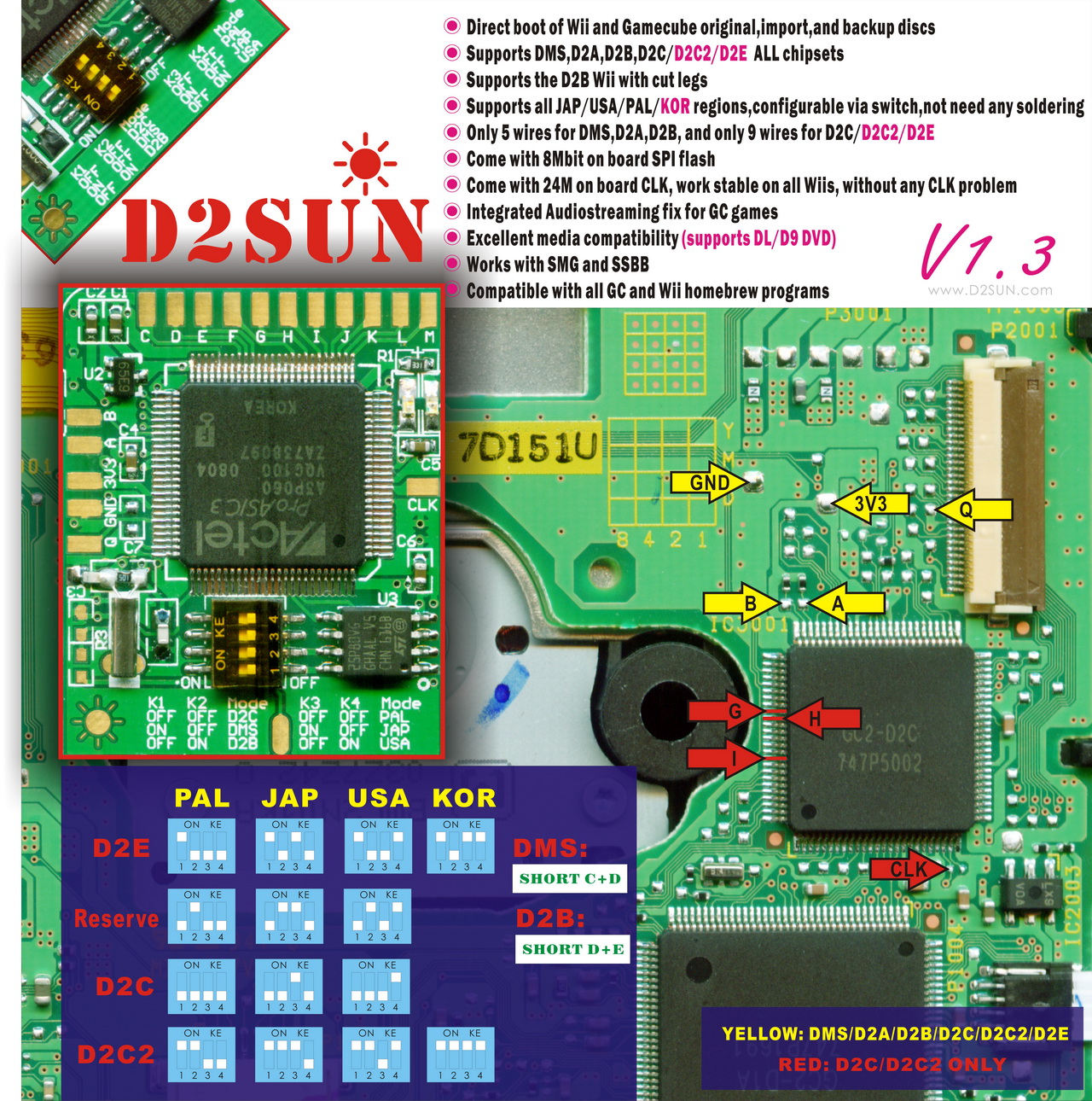

V1.3 / 1.31 |
|
|
V2.01 |
 The Install diagram for D2SUN V2.01 (Support DMS,D2A,D2B,D2C,D2C2 and JAP/USA/PAL/KOR regions, and upgradeable via D2SUN USB upgrade kit.) |
|
V1.21 / 1.22 |
|
V1.1 |
|
